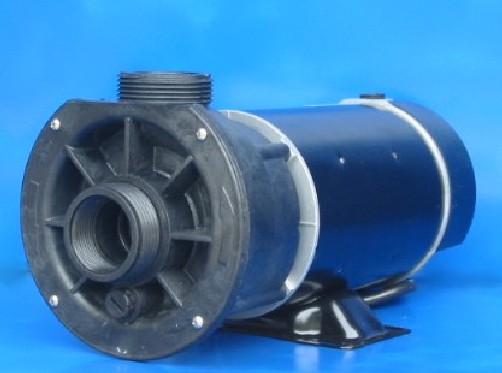

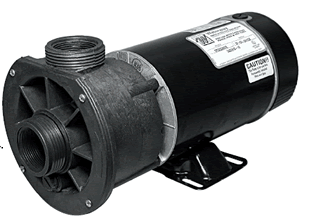

1.5/2HP Waterway Center Discharge Spa Pump 115V
|
|
Part Number: 3420610-15
Manufacturer: Waterway Plastics
Manufacturer Part No: 3420610-15
* denotes required field
Pump Union fittings*
You must select an option for 'Pump Union fittings'.
* Whole number only
|
1.5HP Full Rated/ 2HP Up Rated Waterway Plastics Center Discharge spa pump wet end assembled to a
1.5hp Full Rated 48 frame 2-speed motor.
Available in 115V
Manufacturer Part No: 3420610-15
Other Part No. SP-15-2N11CD,CD-15-2N-11C,CD-2N-11F
|
FEATURES:
• Reliable center discharge performance.

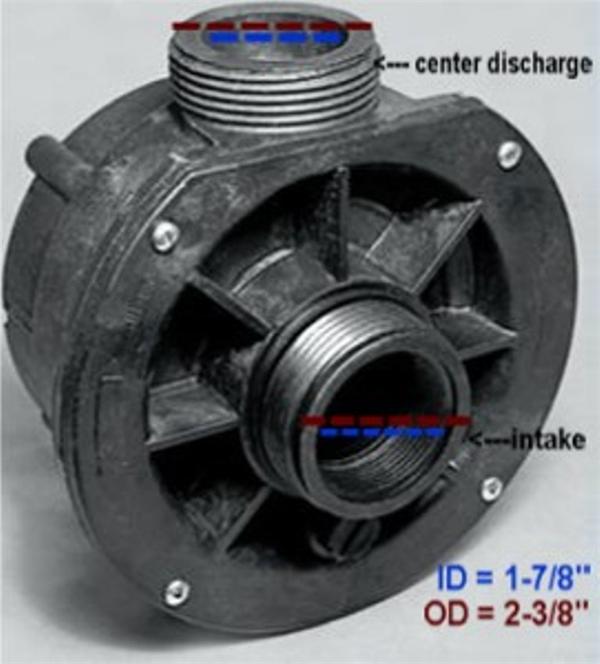

• 1-1/2 inch. intake and discharge.
• Spa Wet end can be rotated for easy installation.
• Available in 1.0 to 2 H.P., 2 speed motors
| Man. Part No. |
Horsepower |
Voltage |
| 3420310-15 |
.75 (use 1hp below) |
115 |
| 3420410-15 |
1.0 |
115 |
| 3420610-15 |
1.5 / 2.0 |
115 |
| 3420620-15 |
1.5 |
230 |
| 3420820-15 |
2.0 |
230 |
|
Pump Union Fitting Available as an Option
Manufacturer Part No: 3420610-15 | 3420620-15 Other Part No. SP-15-2N11CD, SP-15-2N22CD, CD-15-2N-22C,CD-15-2N-22F,CD-15-2N-11C,CD-2N-11F
|
|
|
|
|
|
1.5 inch Pump union for Waterway center and side discharge pumps
|
|
|
|
|
|
|
Use this J&J mini pump cord to plug your pump into our spa control. Order with spa control and save.
|
|
|
|
|
