3.0/4.0HP GE Marathon Spa Pump Motor, 56 Frame, 230V

<< Previous in Hot Tub / Spa Motors

Next in Hot Tub / Spa Motors >>

: $249.00

Part Number: 5KCP49UN9096X

Manufacturer: GE Marathon Electric

Manufacturer Part No: 5KCP49UN9096X

Quantity:

Email this page to a friend

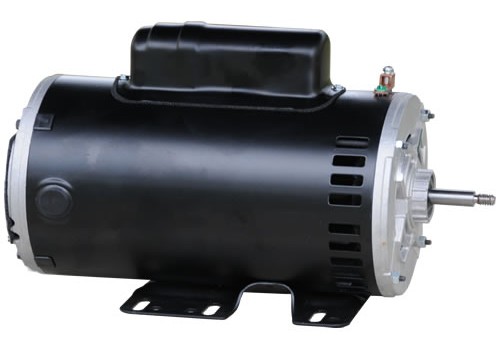

GE Marathon Spa Pump Motor
3.0-4.0HP Spa Pump Motor, 56 Frame, 2-Speed, 230V

Model Number: 5KCP49UN9096X
Other numbers: 9096X, 7136
HP: 3.0-4.0
AMPS: 12.0 / 3.9
RPM: 3450 / 1725
VOLTAGE: 230
DIAMETER: 6.5"
FRAME SIZE: 56
HZ: 60

BUY COMPLETE PUMP FOR $289

CLICK ON PICTURE
-OR-

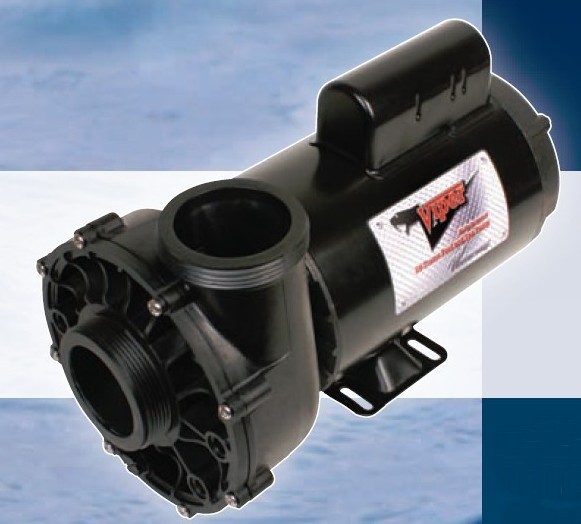

BUY VIPER PUMP FOR $299

FOR SWIM SPAS

CLICK ON PICTURE

Replacement / Used in these models below:
Gulf Coast Spas, LX Series, La-Z-Boy Spas, Pilates H2O Spas, Freestyle Spas, LX 11000, LX11000, LX 9000, LX9000, LX 8000, LX8000, LX 7000, LX7000, LX 5000, LX5000, XP1, XP2, XP3, and many others.

Model No.	Horsepower	Voltage	High Speed Amps	Low Speed Amps	Frame	Diameter	Compare to AO Smith
5KCP39RNB750X	1.0 / 1.5	115	9.8	3.8	48	5.5"	BN37
5KCP39SN4202X	1.5 / 2.0	115	14.4	5.5	48	5.5"	BN50
5KCP39SN4201X	1.5 / 2.0	230	6.8	2.5	48	5.5"	BN34
5KCP39TNB744X	2.5 / 3.0	230	8.4	3.0	48	5.5"	BN61
5KCR39UN6098X	3.3 / 4.0	230	13.0	3.7	48	5.5"	BN62
5KCP49UN9096X	3.0 / 4.0	230	12.0	3.9	56	6.5"	B235

5KCP39RNB750X,5KCP39SN4202X,5KCP39SN4201X,5KCP39TNB744X,5KCR39UN6098X,5KCP49UN9096X,ge marathon,ge motors,hot tub motors,spa motors,ge spa motor,ge hot tub motor,general electric spa motor,general electric hot tub motor,pool and spa motors,replacement hot tub motor,spa motor 48 frame,56 frame spa motor,amp spa motor,1hp spa motor,1.5hp spa motor,2hp spa motor,3hp spa motor,4hp spa motor,5hp spa motor,hot tub replacement motor,48 frame hot tub motor,56 frame hot tub motor,56j,56y,48y,2 speed,1 speed,two speed spa motor,single speed spa motor
