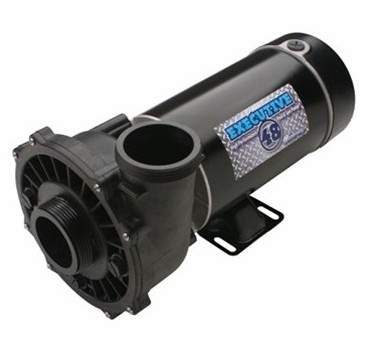

3hp Waterway 48 Frame Executive Spa Pump, 230V

3hp 48 Frame Waterway Executive Spa Pump

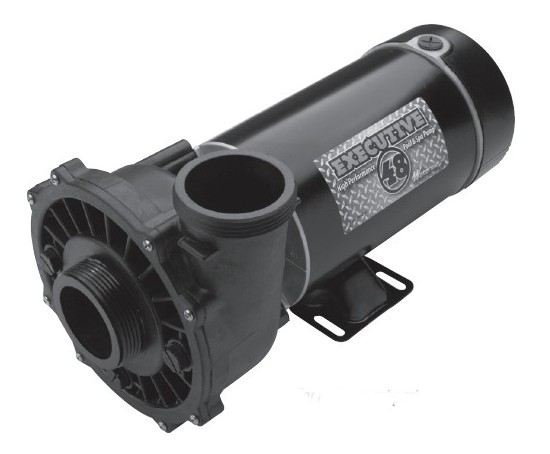

3hp 48 Frame Executive Spa Pump wet end assembled to a 48 frame 3hp 2-speed 230V spa motor.

This spa pump has a 2 inch intake and a 2 inch discharge for plumbing (but measures 3 inches - see bottom of this page)
Manufacture No. 3421221-1A Other Part No. PF-30-2N22C4

Features:

• Executive wet end designed specifically for 48-frame motors
• 2 inch intake for improved flow performance and reduced noise
• Lare 6-1/2 inch diameter wet end for higher head pressure
• Thermally protected to extend life expectancy of motor
• Highly versatile wet end can be rotated every 90 degrees
• 2-year manufactures warranty on motor , 3 years on wet end

Man. Part No.	Horsepower	Voltage
3420610-1A	1.5	115
3420820-1A	2.0	230
3421221-1A	3.0	230V
3421821-1A	4.5	230V

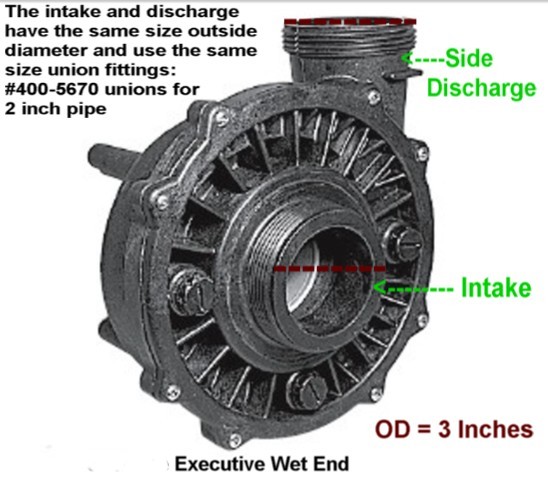

How to measure for the 3hp 48 frame Executive:



Pump Union Fittings for Executive 2 inch Plumbing



Manufacture No. 3421221-1A Other Part No. PF-30-2N22C4
