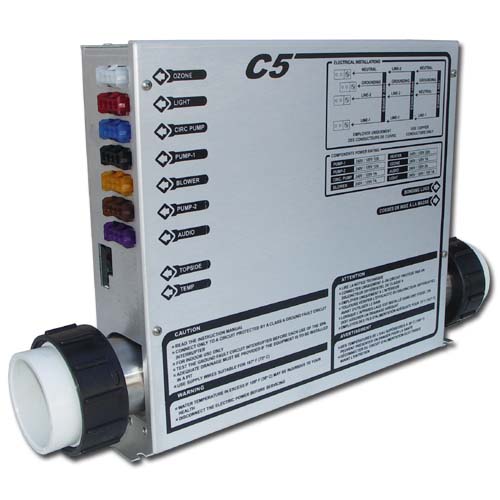

United Spas C5 B Digital Spa Control

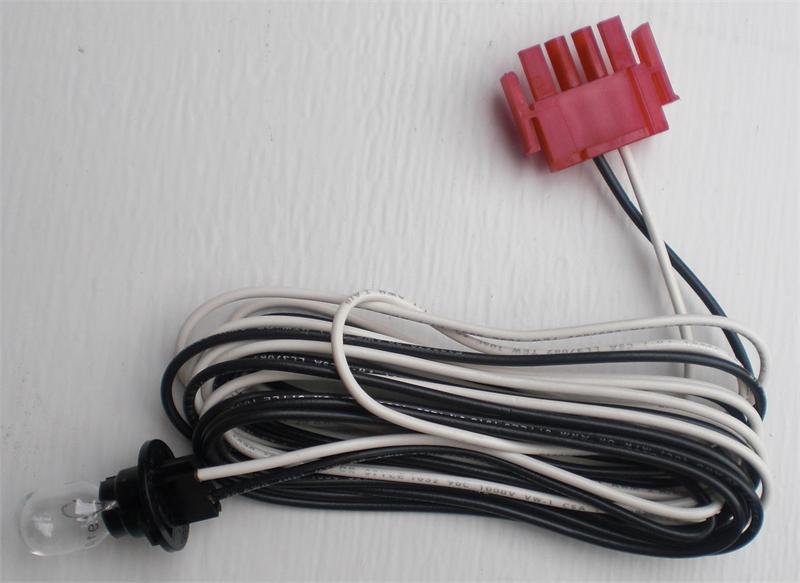

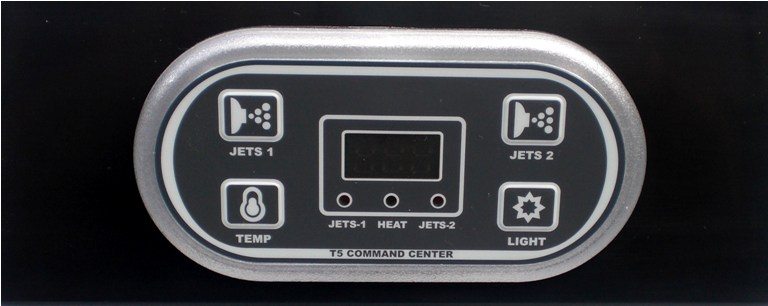

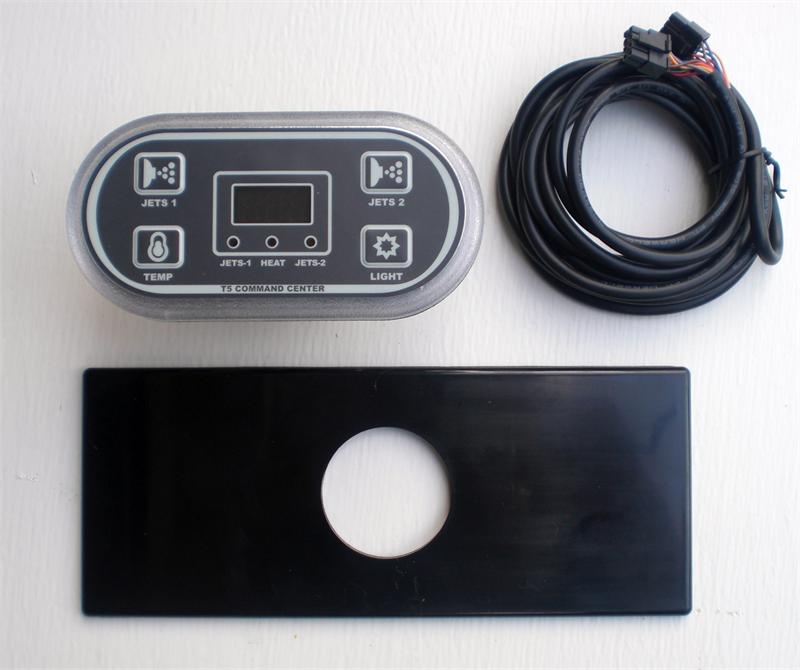

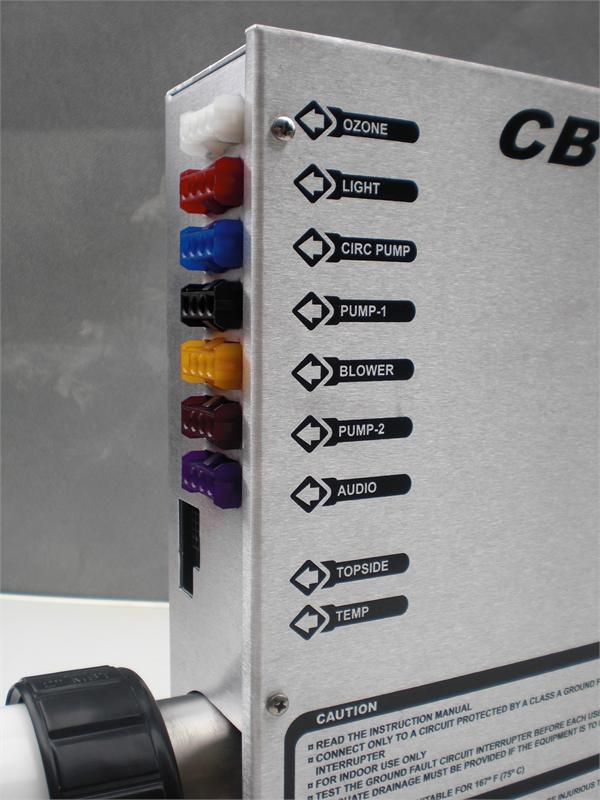

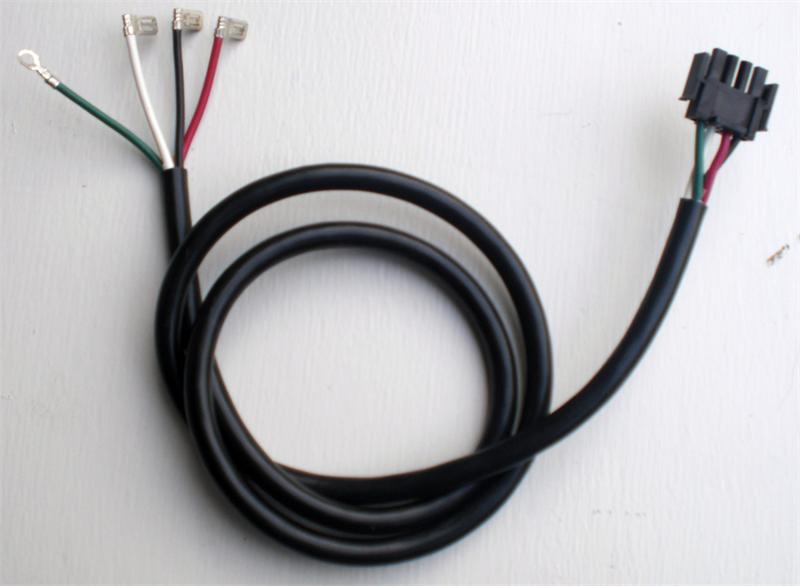

 CB Digital spa control with heater on the bottom  T5 topside with adapter plate and cable T5 topside with adapter plate Main pump cord with amp plug for C5 spa control light with wire and amp plug. Plugs into side of the spa control panel |
|
List: $449.00
: On Sale for a limited time $345.00
Part Number: C5B
Manufacturer: United Spas
Manufacturer Part No: CB | C5 | C5B
* denotes required field
What is the voltage of your spa control?*
If your spa control is 110V, Do you need a power cord?*
A cord is included for the main pump, Do you need a cord for a second pump?*
If you have a second pump on your spa, What is the voltage?*
Do you need a cord for an air blower?*
Do you need a cord for an ozonator?*
Do you need a cord for the circulation pump? (110V- usually under 1/8hp- runs 24hrs.)*
Do you need a cord for Audio/Aux?*
|
Standard Features:
- Self-Standing Control
- T5 Digital Topside
- Topside Adapter/ Extension Face Plate
- 2 Speed 1st Pump Ready w/Cord
- 1 Speed 2nd Pump Ready
- Circulation Pump Ready
- Blower Ready
- 12v Spa Light Ready w/Cord
- Ozone Ready
- Flo-Thru Stainless Steel Heater
Dimensions:
- 11" Tall
- 19" Wide
- 3.25" Deep
- T5 Topside Dimensions: 5" x 2.5"
- Adapter Face Plate Dimensions: 8-1/4" x 3-3/8"
- The included T5 Topside requires only a 1.75" hole saw to install!
NOTE: These units come standard with the cords for the light and a two speed primary pump, if additional AMP cords are needed please check out the 'Cords and Receptacles' section of the store. If you order them above with the spa control you will save a couple of dollars.
These controls come standard with primary and secondary pumps wired for 240v, light wired for 12v, and all other components (blower, ozone, circulation pump, stereo/aux) wired for 120v. Voltages of these controls may easily be changed by moving the neutral wires at the power block in the control as needed. Also, If you are using a second pump make sure to choose the voltage.
We have include the Topside Extension Plate if you are replacing a larger topside then the T5. Be sure to order a 1/4" Thermowell/Bushing (dry sensor well/housing) if the spa you are installing the control into doesn't already have one installed. You can order at the bottom of this page under related products or in the spa parts category. |
|
|
|
|
|
|
|
United Spas T6 topside Touch Control with Molex Plug. Replaces the T5 topside for the C5 Series Spa Control
|
|
|
|
|
|
List: $449.00
: On Sale for a limited time $345.00
|
|
|
United Spas CT Digital Spa Control with heater on the top. Includes topside w/adapter plate, main pump cord and light cord.
|
|
|
|
|
|
|
|
|
|
1/4" Thermowell/Bushing, Dry sensor well housing.
|
|
|
|
|
|
|
|
|
|
This digital spa control pack includes the C5T, 240V spa controller with the T5 topside control. A 240V, 2-speed spa pump and a 1hp 120V spa air blower. It also includes the pump 1 cord and the air blower cord.
|
|
|
|
|
|
|
|
|
|
Ultra Bright LED Spa Light installs in place of the light bulb in your Hot Tub!
Available in 10 LED or 27 LED
|
|
|
|
|
|
|
|
|
|
Standard 3-1/2 inch diameter spa light lense kit- plastic only
|
|
|
|
|
|
|
|
|
|
Power cord with a standard Nema plug. Use for 120V spa controls.
|
|
|
