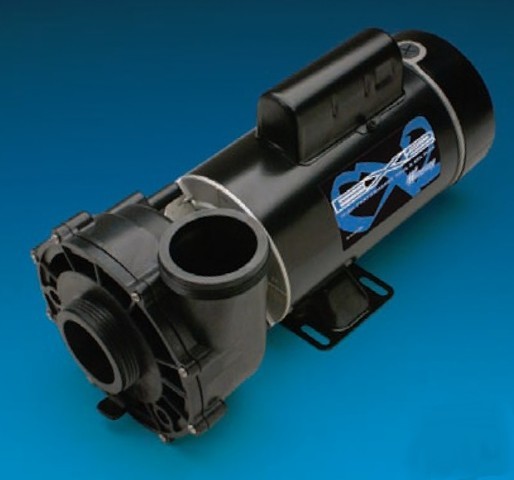

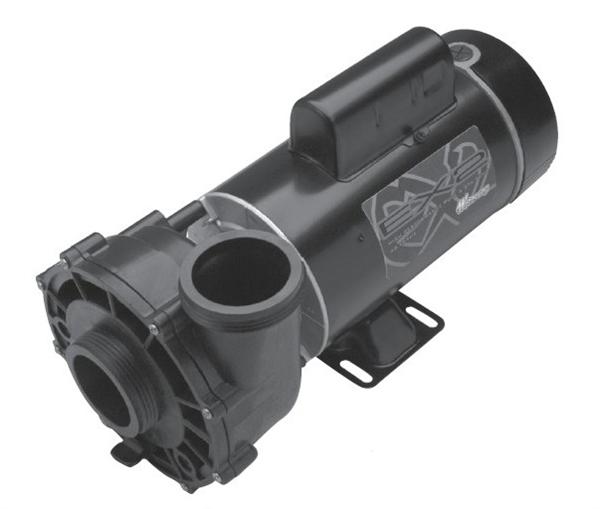

Waterway EX2, 48 Frame Spa Pump, 3.0/4.0hp, 230V
|
|
Part Number: 3421821-1U
Manufacturer: Waterway Plastics
Manufacturer Part No: 3421821-1U
|
Waterway Plastics EX2 Spa Pump, 2hp hot tub pump, 230V
48 Frame
2-speed, 12.0 / 3.5 Amps
230V, 60 Hz

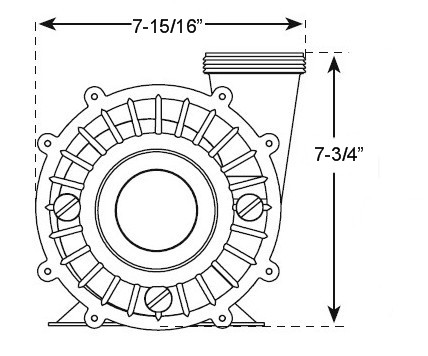

2” intake and a 2” discharge (measures approx. 3" OD)
Man. Part No. 3421821-1U
Also Replaces Aqua Flo XP2 & XP2e 0613095-2040 FMXP, 06130000, XP2553022,EX-40-2N22CE
Features:
|
Manufacture Part No.
|
Horsepower
|
HZ
|
Voltage
|
Amps
|
*Replaces Aqua-Flo Part No.
|
| 3420610-1U
|
1.5 FULL RATED
|
60
|
115
|
13.8 / 3.6
|
06115000-1040
|
| 3421021-1U
|
2.0 FULL RATED
|
60
|
230
|
9.0 / 2.8
|
06120500-2040
|
| 3421020-1U
|
2.5 FULL RATED/ 3.0 UP RATED
|
60
|
230
|
11.0 / 3.3
|
06125000-1040
|
| 3421821-1U
|
3.0 FULL RATED/ 4.0 UP RATED
|
60
|
230
|
12.0 / 3.5
|
0613095-2040
|
*There may be several other Part No. used
Man. Part No. 3421821-1U
Also Replaces Aqua Flo XP2 & XP2e 0613095-2040 FMXP, 06130000, XP2553022,EX-40-2N22CE
|
|
|
|
|
|
|
|
Waterway Plastics EX2 Spa Pump wet end assembled to a 48 frame, hp, 2-speed 115V hot tub motor with a 2” intake and a 2” discharge. Man. Part No. 3420610-1U Also Replaces Aqua Flo XP2 06115000-1040
|
|
|
|
|
|
|
|
|
|
Waterway Plastics EX2 Spa Pump wet end assembled to a 48 frame, 2hp, 2-speed 230V hot tub motor with a 2” intake and a 2” discharge. Man. Part No. 3421021-1U Also Replaces Aqua Flo XP2 06120500-2040
|
|
|
|
|
|
|
|
|
|
Waterway Plastics EX2 Spa Pump wet end assembled to a 48 frame, 2.5/3hp, 2-speed 230V hot tub motor with a 2” intake and a 2” discharge. Man. Part No. 3421020-1U Also Replaces Aqua Flo XP2 06125000-1040
|
|
|
