Executive 48, 2 or 2-1/2 Inch Spa Pump Wet End, 1-1/2HP
|
|
Part Number: 310-1880, 310-1810
Manufacturer: Waterway Plastics
Manufacturer Part No: 310-1880, 310-1810
* Whole number only
|

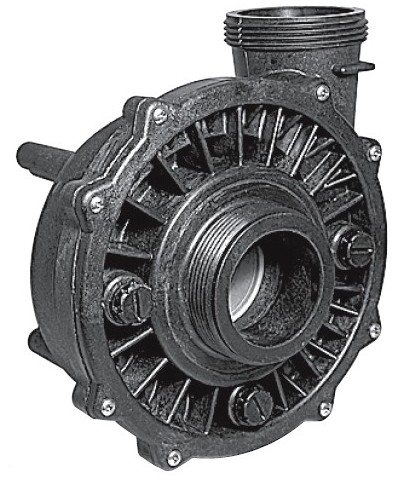

Waterway Executive 48 Frame, 2 or 2-1/2 Inch Intake, Spa Pump Wet End, 1-1/2 HP
Part No. 310-1880 (2 inch) or 310-1810 (2-1/2 inch)
Features:
- 2 inch or 2-1/2 inch Intake and 2” Discharge

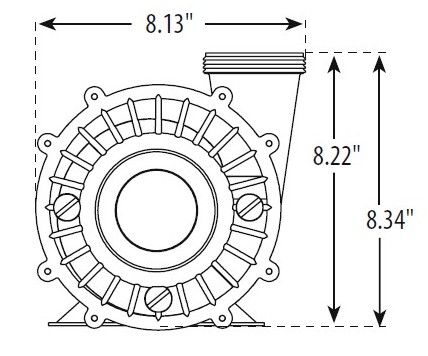

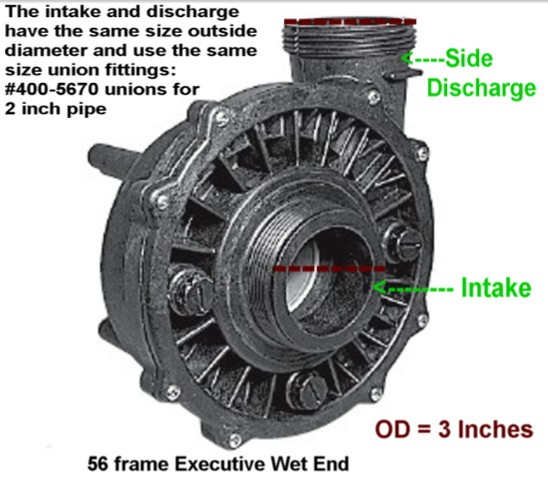

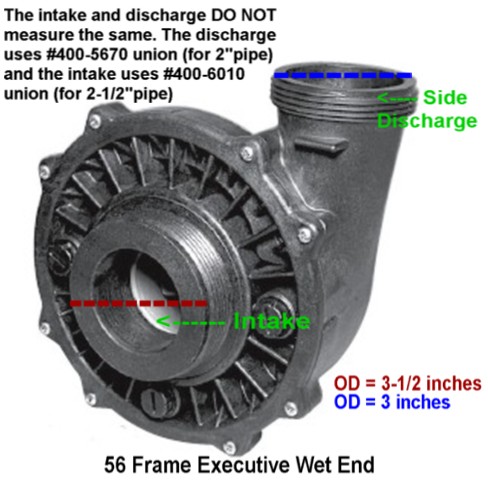

- Outside diameter of Intake measures 3 inches or 3-1/2 Inches (see picture above)
- Outside diameter of Discharge measures 3 inches (see picture above)

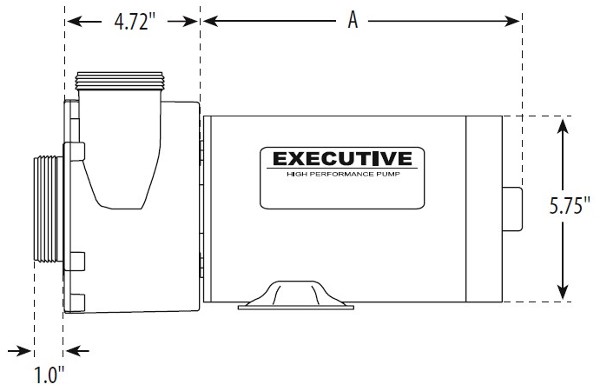

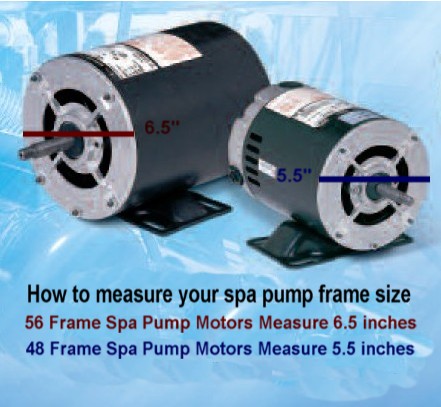

- Use with a 48 frame motor (measures 5-1/2 inch diameter- see picture above)
- 1 year Manufacturer’s warranty
Can be used for replacement with Waterway Part No. 3420610-1A, 3420620-1A (2 inch) or 3420610-13, 3420620-13 (2-1/2 inch), PF-15-2N11C4,PF-15-2N22C4, PF-15-1N11C4, PF-15-1N22C4
May also be used with many other 48 frame through bolt motors such as:
Click on pictures below to view:

AO Smith 48 Frame Motors GE Marathon Electric Motors  Complete Executive 48 Frame Pumps
Other Part Numbers that may be on this wet end: 311-1239 DNB, 311-1200, 315-1240 (Volute for 48 frame Executive) |
|
|
|
|
|
GE Marathon Spa Pump Motor. 1.5-2.0 HP, 2-Speed, 48 Frame, 115V, 14.4 / 5.5 AMPS, Part #5KCP39SN4202X, Other Part no. 5040
|
|
|
|
|
|
|
Man. Part No. 400-5670
2 inch pump union for Hi-flo and 2 inch Executive
|
|
|
|
|
|
|
Century Spa Pump Motor. 1.5HP Full rated, 2HP Uprated, 2-Speed, 48 Frame, 115V 13.8/3.8 AMPS, Part# 7-177803, BN50V1 Replaces Part #177803, BN50 & use for BN60, 7-186022-03
|
|
|
|
|
|
|
GE Marathon Spa Pump Motor. 1.5-2.0 HP, 2-Speed, 48 Frame, 230V 6.8 / 2.5 AMPS, Part # 5KCP39SN4201X, Other Part No. 5118
|
|
|
|
|
|
|
Man. Part No. 400-6010
2-1/2 inch pump union for Executive Spa Pumps
|
|
|
|
|
|
|
1.5hp 48 Frame Executive Spa Pump wet end assembled to a 48 frame 1.5hp 2-speed 115V spa motor. Manufacture No. 3420610-1A Other Part No. PF-15-2N11C4
|
|
|
|
|
