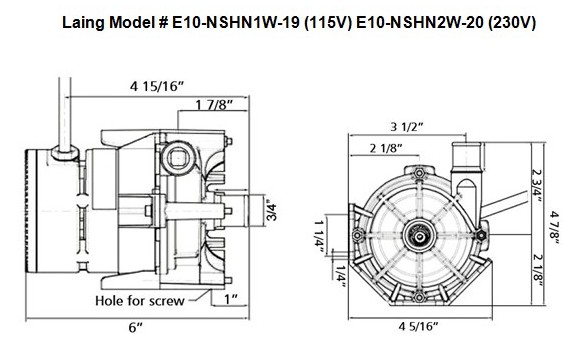

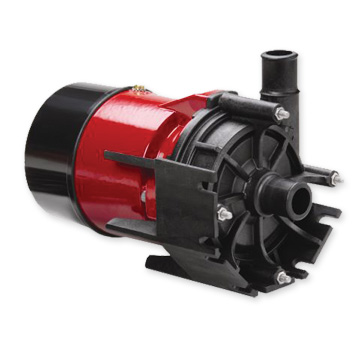

Laing Thermotech circulating spa pump - Series SM909 is replaced by E-10 Series
Old Part numbers: SM-909-NH-18-230/60 & SM-909-NH-18-115V/60

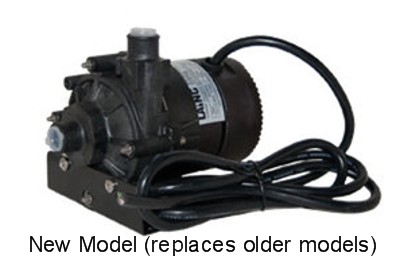

New Part No. E10-NSHN1W-19 (3/4") replaces SM-909-NH-18115V/60 &
E10-NSHN2W-20 (3/4") replaces SM-909-NH-18-230V/60
Applications
Specifically designed for the following use
•Water Circulation
•Chiller Systems
•Ozone Treatment
•Freshwater Aquarium Circulation

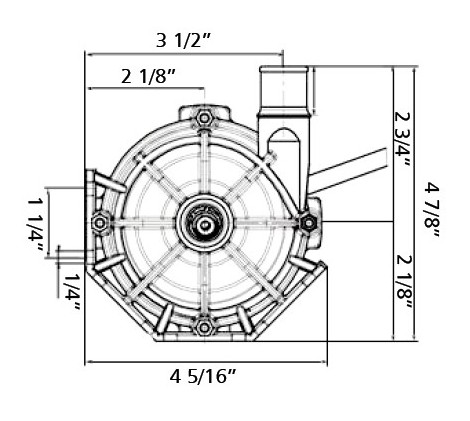

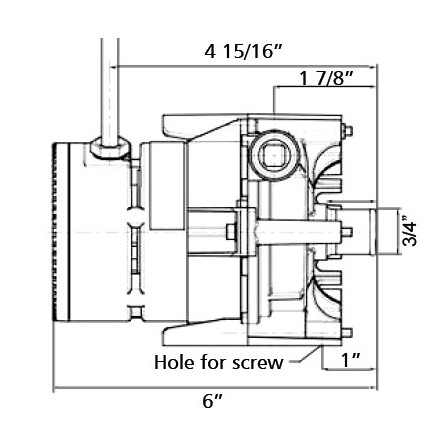

Specifications:
Pump:
•Max Capacities: 14 GPM
•Max Head: 20’
•Pipe Connections:
¾” Barb Suction and Discharge
¾” MPT Suction and Discharge
•Maximum Working Pressure: 50 PSI
•Maximum Temperature: 140° F
•Rotation: counter clockwise when viewed from the motor end
Motor:
•Electronically Commutated AC/DC/AC Spherical Motor
•Canned Spherical Motor Type
•115 Volt 62 Watts 50/60 Hz,3100 RPM
•230 Volt 71 Watts 50/60 Hz, 3200 RPM
•Automatic Overload Protection
CROSS REFERENCE CHART FOR SM-909-NH-18 MODELS
|
Hot Tub Manufacturer
|
Production No. / Voltage
|
Laing No.
|
Model No. - Voltage/Hz
|
Other Laing No.
|
Other No.
|
|
A.H. Equip./ LA Spa
|
SM-909-NHW-18 115V
|
6678.9
|
SM-909-NH-18-115V/60
|
6496
|
1-00-0173
|
|
A.H. Equip./ LA Spa
|
SM-909-NHW-18 230V
|
6321.9
|
SM-909-NH-18-230V/60
|
6437
|
1-00-0174
|
|
Atlantic Coast
|
SM-909-NHW-18 115V
|
6331.9
|
SM-909-NH-18-115V/60
|
6496
|
1-00-0173
|
|
Hawkeye
|
SM-909-NHW-18 115V
|
6597.9
|
SM-909-NH-18-115V/60
|
6496
|
1-00-0173
|
|
Jacuzzi
|
SM-909-NHW-18 230V
|
6496.9
|
SM-909-NH-18-230V/60
|
6437
|
1-00-0074
|
|
Krevco LTD
|
SM-909-NHW-18 115V
|
6049.9
|
SM-909-NH-18-115V/60
|
6496
|
1-00-0073
|
|
Krevco LTD
|
SM-909-NHW-18 230V
|
6543.9
|
SM-909-NH-18-230V/60
|
6437
|
1-00-0074
|
|
Royal
|
SM-909-NHW-18 115V
|
6142.9
|
SM-909-NH-18-115V/60
|
6496
|
1-00-0073
|
|
Santa Barbara Spas
|
SM-909-NHW-18 230V
|
6321.9
|
SM-909-NH-18-230V/60
|
6437
|
1-00-0074
|
|
Sundance
|
SM-909-NHW-18 230V
|
6496.9
|
SM-909-NH-18-230V/60
|
6437
|
1-00-0074
|
|
Sundance
|
SM-909-NHW-18 230V
|
6602.9
|
SM-909-NH-18-230V/60
|
6437
|
1-00-0074
|
NOTE: Other Part No.**SM-909-NH-14 (1/50HP) can be upgraded to the**SM-909-NH-18 (1/20HP)
The (NH models) are 3/4 inch barb X 3/4 inch Barb The difference is the horsepower.
The SM-909-NH-18 has a flow rate of 11 GPM and are 1/20HP. The SM-909-NH-14 have a flow rate of
6 GPM and are 1/50HP
CROSS REFERENCE CHART FOR SM-909-NH-14 MODELS -UPGRADE **
|
Hot Tub Manufacturer
|
Production No. / Voltage
|
Laing No.
|
Model No. / Voltage
|
Other Laing No.
|
Other No.
|
|
Dimension One
|
SM-909-NHW-14 115V
|
6355.9
|
SM-909-NH-14 115V
|
9936
|
1-00-0136
|
|
Gatsby
|
SM-909-NHW-14 115V
|
6425.9
|
SM-909-NH-14 115V
|
9936
|
1-00-0136
|
|
Sundance
|
SM-909-NHW-14 115V
|
6603.9
|
SM-909-NH-14 115V
|
9936
|
1-00-0136
|
|
Watkins/ Caldera
|
SM-909-NHW-14 115V
|
6596.9
|
SM-909-NH-14 115V
|
9936
|
1-00-0136
|
|
Watkins/ Caldera
|
SM-909-NHW-14 115V
|
6596
|
SM-909-NH-14 115V
|
9936
|
1-00-0136
|
Features
Compact Design:
Close coupled, space saving design provides easy
installation.
Mounting:
Pump can be mounted horizontally or vertically with
motor end down. Thermoplastic integrated pump
bracket is adjustable to 4 different discharge angles.
Motor Bracket:
Thermoplastic motor bracket is adjustable to 4 different
discharge angles.
Construction:
Available in 316SS fitted thermoplastic.
Ceramic Bearing Ball and Carbon Bearing Cap:
High density ceramic bearing ball and graphite impeller
bearing cap designed for high efficiency and long life.
Impeller:
Highly efficient, clog resistant open impeller is
dynamically balanced with carbon bearing for smooth
ultra quiet operation.
Casing:
Casing is thermoplastic construction.
Mechanical Seal:
Unique patented design has no mechanical seal which is
a potential leak path.
Motor:
Highly efficient and ultra quiet spherical motor design.
Pump is designed for continuous operation. All ratings
are within working limits of the motor.
Electronics:
Embedded microprocessor control is self protected
against dry run conditions. Available with variable speed
with PWM input or dial control (potentiometer) on the
pump.
Noise level:
Whisper quiet, less than 40 db.
Weight:
Lightweight construction weighs less than 4lbs.
Model Numbers: (115V) SM909NH18115/60 (230V) SM909NH230/60
E10-NSHNNN1W-19 3/4" E10-NSHNNN2W-20 3/4"
Laing Spa/ Hot tub circulation pump/motor can also be used for ponds, aquariums.
The Laing Thermotech circulation spa pump is available in 115V or 220V
The Laing hot tub pump is 3/4 inch barb suction and 3/4 inch discharge
