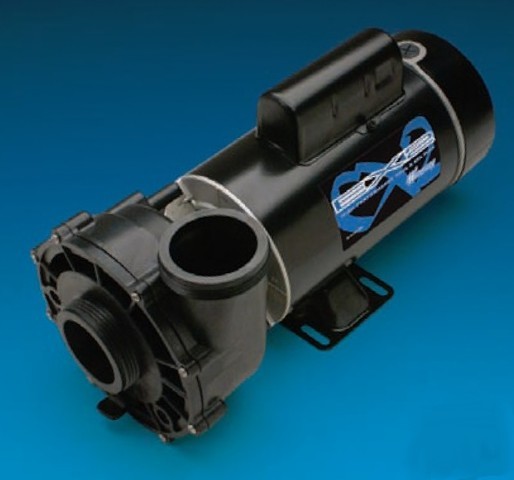

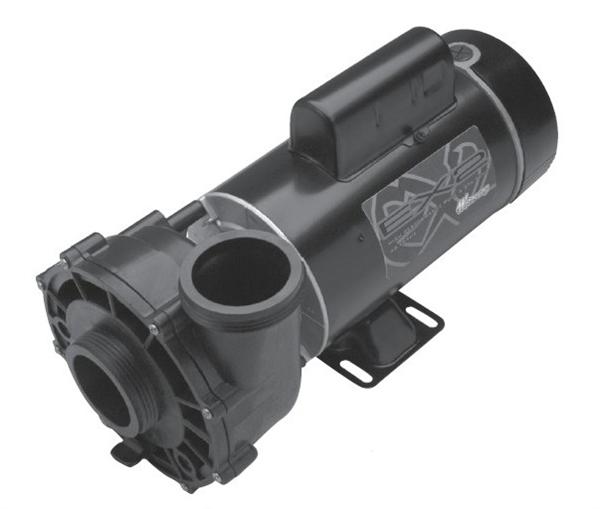

Waterway EX2, 48 Frame Spa Pump, 2hp, 230V
|
|
Part Number: 3421021-1U
Manufacturer: Waterway Plastics
Manufacturer Part No: 3421021-1U
|
Waterway Plastics EX2 Spa Pump, 2hp hot tub pump, 230V
48 Frame
2-speed, 9.0 / 2.8 Amps
230V, 60 Hz

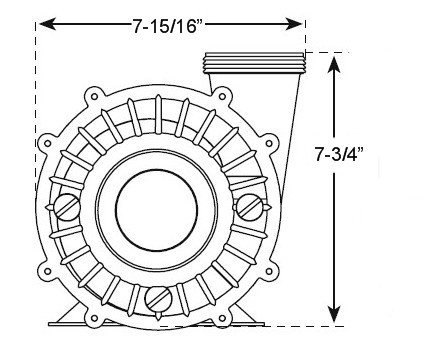

2” intake and a 2” discharge (measures approx. 3" OD)
Man. Part No. 3421021-1U Also Replaces Aqua Flo XP2 & XP2e 06120500-2040, 06120000-1040
Features:
- True continuous rated horsepower
- 48 Frame, Dual Speed (energy saving)
- Use more jets per pump
- Same physical size as Aqua-Flo XP2, XP2e (fits within the same volume envelope)
- Can be used as a substitute or retrofit to Aqua-Flo model XP2 or XP2e pumps
- Can also replace similar pumps and wet ends offered by other domestic and foreign suppliers
- Made in USA with highest quality materials with UL and CUL certifications
- CE and TUV certification on export pumps to ensure product performance for you and your customers
- Equipped with the highest quality Viton Seals
- Equipped with high efficiency electrical motors, custom designed for spa applications
Manufacture Part No.
|
Horsepower
|
HZ
|
Voltage
|
Amps
|
*Replaces Aqua-Flo Part No.
|
3420610-1U
|
1.5 FULL RATED
|
60
|
115
|
13.8 / 3.6
|
06115000-1040
|
3421021-1U
|
2.0 FULL RATED
|
60
|
230
|
9.0 / 2.8
|
06120500-2040
|
3421020-1U
|
2.5 FULL RATED/ 3.0 UP RATED
|
60
|
230
|
11.0 / 3.3
|
06125000-1040
|
3421821-1U
|
3.0 FULL RATED/ 4.0 UP RATED
|
60
|
230
|
12.0 / 3.5
|
0613095-2040
|
*There may be several other Part No. used
Man. Part No. 3420610-1U Also Replaces Aqua Flo 06120500-2040, 06120000-1040, XP2,XP2e, EX-30-2N22CE, EX-20-2N22CE,,PF-2NCF
|
|
|
|
|
|
|
|
Waterway Plastics EX2 Spa Pump wet end assembled to a 48 frame, hp, 2-speed 115V hot tub motor with a 2” intake and a 2” discharge. Man. Part No. 3420610-1U Also Replaces Aqua Flo XP2 06115000-1040
|
|
|
|
|
|
|
|
|
|
Waterway Plastics EX2 Spa Pump wet end assembled to a 48 frame, 2.5/3hp, 2-speed 230V hot tub motor with a 2” intake and a 2” discharge. Man. Part No. 3421020-1U Also Replaces Aqua Flo XP2 06125000-1040
|
|
|
|
|
|
|
|
|
|
Waterway Plastics EX2 Spa Pump wet end assembled to a 48 frame, 3.0/4.0hp, 2-speed 230V hot tub motor with a 2” intake and a 2” discharge. Man. Part No. 3421821-1U Also Replaces Aqua Flo XP2 0613095-2040
|
|
|
